Name: Micro XLR Microphone
Brand: Wildtronics LLC
SKU: 00042
Price: 80.0 USD
Availability: InStock

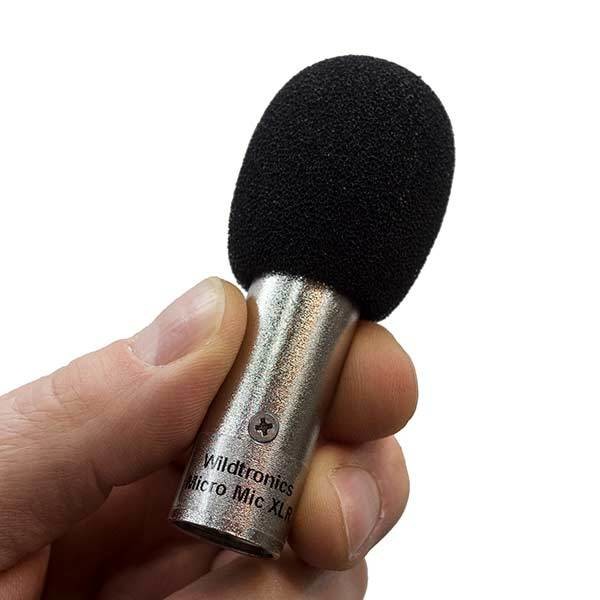

Micro Mic XLR

Store/All Purpose Parabolic

Product Details

Brand: Wildtronics LLC

The affordable, low noise, omnidirectional, balanced output microphone powered by phantom power!

Omnidirectional response, meaning it will pick up sounds from all directions. When used with our parabolic reflector kits, a highly directional response results.
Low noise microphone, 14dBA
Balanced XLR output.
Compatible with XLR input recording devices.
Powered by your recorder using 48 Volt phantom power.
Fits our Pro Mini, All Purpose, and Pro Universal Parabolic Kits.
Rugged metal housing is plated and shields from EMI/RFI.
Weighs just 1 ounce
Does not include a cable. Use your own XLR cable to connect to your recorder.

The Wildtronics Micro Mic XLR Microphone is a cost effective, low noise, high sensitivity omnidirectional microphone that can be used in one of our parabolic kits or be used by itself as a general purpose omnidirectional microphone. The Micro Mic XLR is small in size and can be used less obtrusively than longer microphones that can stick way outside a parabola, making the system much more portable.

The Micro Mic XLR requires 48 volt phantom power to power the microphone. Phantom power is delivered from your XLR connector based recorder. The microphone has a balanced output. The noise floor of the microphone is just 14dBA, which is good enough for picking up quieter natural environments. The Micro Mic XLR does not come with a cable. Since every application needs a different length cable, we suggest you find the right length cable of your choice from your favorite audio supplier.

When you purchase the Micro Mic XLR with a parabolic kit, we will include an adapter that allow the parabolic kit to hold the microphone. Insert the adapter in the parabolic kit's mounting hub first so that the slit in the adapter is 90 degrees from the thumbscrew location. When the thumbscrew is tightened, the slit will close and hold the microphone tightly. Refer to you parabolic kit's manual on how far to stick out the microphone from the hub surface.

Specifications:

Polar Pattern: Omnidirectional

Frequency Response: 20-20KHz

Maximum Input Sound Level: 120dB, 1Khz THD <3%

Signal to Noise Ratio: 80dB, Self Noise: 14dBA

Mic Sensitivity at 0dB gain: -28dB at 1kHz

XLR Connector Wiring: Pin 1= ground, Pin 2= signal (+), pin 3= signal (-)

Weight: 1oz

Dimensions: 18x63mm (0.70 x 2.50 inches)

Power requirements: 48 Volt Phantom Power

Microphone Housing: machined steel, plated finish

Type of Microphone Element: permanently charged condenser

Made in the USA, RoHS lead free, with CE conformity

Instructions for Installing the Micro Mic PIP into the All Purpose Parabolic Microphone.

Made in the USA, RoHS lead free, with CE conformity.
